Button Cutters - Series #6
2.000 Diameter Endmill Style
![Series #6 Button Cutter.png](https://static.spacecrafted.com/a21b40f2c10441d1ab8cc6fb14ef6b3d/i/c239106497c640b8841c67b33579fdf3/8/4SoifmQp45JMgBnHdmR4G/Series%20%236%20Button%20Cutter.png)
- - Radial chip thinning allows for higher feed rates
- - Free cutting positive top inserts available in multiple grades.

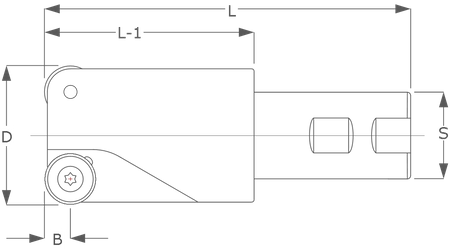

![Series#6 Button Cutter illustration.png](https://static.spacecrafted.com/a21b40f2c10441d1ab8cc6fb14ef6b3d/i/c2003f5428454f03a35076ad8aff0e8f/7/4SoifmQp45JMgBnHiDNuJ/Series%236%20Button%20Cutter%20illustration.png)
Tool Info. Series #6 Button Cutter |
|||||||||||
Tool # | D | B | Flutes | L | L-1 | S | Plunge | Ramp | Inserts | Screw | Wrench |
BC6-2000L | 2.000 | .375 | 2.000 | 8.687 | 6.000 | 1.500 | .120 | 7° | RCEB-64 | 1012T | T-25 |
Series #6 - Shell Mills
4.000 - 6.000 Diameter

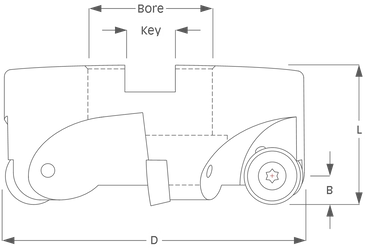

![Series#6 Button Cutter shell mill illustration.png](https://static.spacecrafted.com/a21b40f2c10441d1ab8cc6fb14ef6b3d/i/ebad70ebc9e3404895a898362915e236/7/4SoifmQp45JMgBnHgjjUx/Series%236%20Button%20Cutter%20shell%20mill%20illustration.png)
Series #6 Button Cutter Shell Mill |
|||||||||||
Tool # | D | B | Flutes | L | Bore | Key | Plunge | Ramp | Inserts | Screw | Wrench |
BC6-4000 | 4.000 | .375 | 5.000 | 1.750 | 1.500 | .625 | .210 | 4° | RCEB-64 | 1012T | T-25 |
BC6-5000 | 5.000 | .375 | 6.000 | 1.750 | 1.500 | .625 | .210 | 3° | |||
BC6-6000 | 6.000 | .375 | 6.000 | 1.750 | 1.500 | .625 | .210 | 2° |
Insert Info.
![RCEB Molded Inserts.png](https://static.spacecrafted.com/a21b40f2c10441d1ab8cc6fb14ef6b3d/i/b7e6d3ec116e44a5a112ec72db4e7cd5/7/4SoifmQp45JMgBnHdn6QC/RCEB%20Molded%20Inserts.png)
Insert Info. .750 I.C. - Molded |
|||
Insert # | I.C. | T | Grades |
RCEB-64 | .750 | .250 | X33 / A10M |
Technical Data
Speed and Feed Info. Series #6 Button Cutters |
||
Material | S.F.M. | I.P.T. |
Mild & Low Carbon Steel Ex. 1018, 1020, 1117, 1141, 12L14 |
800 - 1200 | .003 - .012 |
High
Carbon & Alloy Steel Ex. 1045, 4140, 4340, 52100, 8620 |
500 - 800 | .003 - .010 |
Lower
Carbon Tool Steel Ex. P-20, H-13, S-7 |
400 - 700 | .003 - .010 |
Tool
Steel Ex. A-2, A-6, D-2, M-2 |
300 - 600 | .003 - .010 |
Stainless
Steel Ex. 304, 316, 420, 15-5PH, 17-4PH |
300 - 600 | .002 - .007 |
Iron Ex. Cast, Ductile, Nodular |
600 - 1000 | .004 - .012 |
Nickel
& Titanium Alloy Ex. Inconel, Hastelloy, TI-6AL-4V |
120 - 180 | .001 - .004 |
Non-Ferrous
Metal Ex. Aluminum, Bronze, Brass |
1000 - 2500 | .004 - .014 |
Insert Grade Selection RCEB ( Molded Inserts ) |
||
Material | Material Examples | Preferred Grade |
High & Low Carbon Steels | 1018, 1020, 1117, 1141, 12L14 | X33 / A10M |
High Carbon & Alloy Steels | 1045, 4140, 4340, 52100, 8620 | X33 / A10M |
Lower Carbon Tool Steels | P-20, H-13, S-7 | X33 / A10M |
Tool Steels | A-2, A-6, D-2, M-2 | X33 / A10M |
Stainless Steels | 303, 304, 316, 420, 15-5PH, 17-4PH | X33 / A10M |
Iron | Cast, Nodular | X33 / A10M |
Iron | Ductile | X33 / A10M |
Nickel & Titanium Alloys | Inconel, Hastelloy, TI-6AL-4V | X33 / A10M |
Non-Ferrous Metals | Aluminum, Bronze, Brass | X33 / A10M |
Insert Grade Description RCEB Inserts |
|
Grade | Description |
A10M | TIALN / TIN Coated Carbide |
X33 | High Performance Nitride Coating |
B1M | Uncoated Carbide - No Hone |
X40 | Extremely Smooth Boride Coating |
