Keli-Mills
Shank & Shell Mount Tools
Shank Tools
![Keli Mills - Shank Style KE Shank Tools](https://static.spacecrafted.com/a21b40f2c10441d1ab8cc6fb14ef6b3d/i/ed1380d8d3a9407fa79eda52101fb50e/7/4SoifmQp45JMgBnHfDivx/keli-Mill%20shank%20tool%20pic.png)
![KE - Dimensions KE Illustration](https://static.spacecrafted.com/a21b40f2c10441d1ab8cc6fb14ef6b3d/i/e201ef79877f43d7bc69723e34f225ea/7/4SoifmQp45JMgBnHgiPZE/Keli-Mill%20Shank%20Tool%20Illustration.png)
Tool Info. Shank Tools |
|||||||||
Tool # | D | Flutes | L | L-1 | D.O.C. | S | Inserts | Screw | Wrench |
KE-1000-2 | 1.000 | 2 | 3.750 | 1.500 | .580 | 1.000 | LPMT-52-532 LPMT-52-533 LPMT-52-534 |
560T | T-10 |
KE-1000-3 | 1.000 | 3 | 3.750 | 1.500 | .580 | 1.000 | |||
KE-1250-3 | 1.250 | 3 | 4.000 | .875 | .580 | 1.000 | |||
KE-1250-4 | 1.250 | 4 | 4.000 | .875 | .580 | 1.000 | |||
KE-1500-4 | 1.500 | 4 | 4.000 | .875 | .580 | 1.000 | |||
KE-1500-5 | 1.500 | 5 | 4.000 | .875 | .580 | 1.000 |
Shell Mills

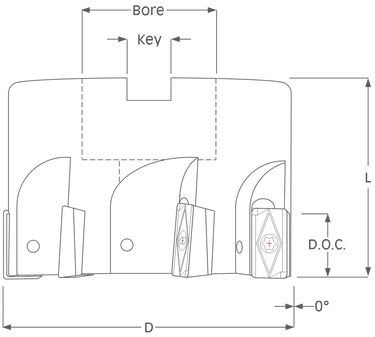

![Keli-Mill Shell Mill Illustration.png](https://static.spacecrafted.com/a21b40f2c10441d1ab8cc6fb14ef6b3d/i/e57ed1e0890741328b7e4384df0bfad6/7/4SoifmQp45JMgBnHghiDJ/Keli-Mill%20Shell%20Mill%20Illustration.png)
Tool Info. Shell Mills |
|||||||||
Tool # | D | Flutes | L | D.O.C. | Bore | Key | Inserts | Screw | Wrench |
KE-2000 | 2.000 | 6 | 1.625 | .580 | .750 | .312 | LPMT-52-532 LPMT-52-533 LPMT-52-534 |
560T | T-10 |
KE-2500 | 2.500 | 7 | 1.625 | .580 | 1.000 | .375 | |||
KE-3000 | 3.000 | 8 | 1.750 | .580 | 1.250 | .500 |
Insert Info.
![LPMT Insert Dimensions.png](https://static.spacecrafted.com/a21b40f2c10441d1ab8cc6fb14ef6b3d/i/ea0c841837ce4186a8ecf78682bf9cd5/7/4SoifmQp45JMgBnHghiDJ/LPMT%20Insert%20Dimensions.png)
LPMT / Positive Top | |||||||
Insert # | R | L | W | T | Available Grades | ||
LPMT-52-532 | .031 | .600 | .320 | .208 | K11 / B1M | ||
LPMT-52-533 | .047 | .600 | .320 | .208 | K11 / K40 | ||
LPMT-52-534 | .062 | .600 | .320 | .208 | X33 |
Technical Data
Speed and Feed Info. Shank & Shell Mills |
||
Material | S.F.M. | I.P.T. |
Stainless Steel Ex. 304, 316, 420, 15-5PH, 17-4PH |
300 - 600 | .002 - .004 |
Iron Ex. Cast, Ductile, Nodular |
600 - 1200 | .003 - .007 |
Nickel
& Titanium Alloy Ex. Inconel, Hastelloy, TI-6AL-4V |
120 - 180 | .001 - .004 |
Non-Ferrous
Metal Ex. Aluminum, Bronze, Brass |
1000 - 2500 | .005 - .010 |
Insert Grade Selection | ||
Material | Material Examples | Preferred Grade |
Stainless Steels | 303, 304, 316, 420, 15-5PH, 17-4PH | K11 / X33 |
Iron | Cast, Nodular | K11 / X33 |
Iron | Ductile | K11 / X33 |
Nickel & Titanium Alloys | Inconel, Hastelloy, TI-6AL-4V | K11 / X33 |
Non-Ferrous Metals | Aluminum, Bronze, Brass | B1M / X40 |
Insert Grade Description | |
Grade | Description |
B1M | Uncoated Carbide - No Hone |
K11 | Universal High Performance Dense Coating |
K22 | Ultra Smooth Dense Coating - No Hone |
